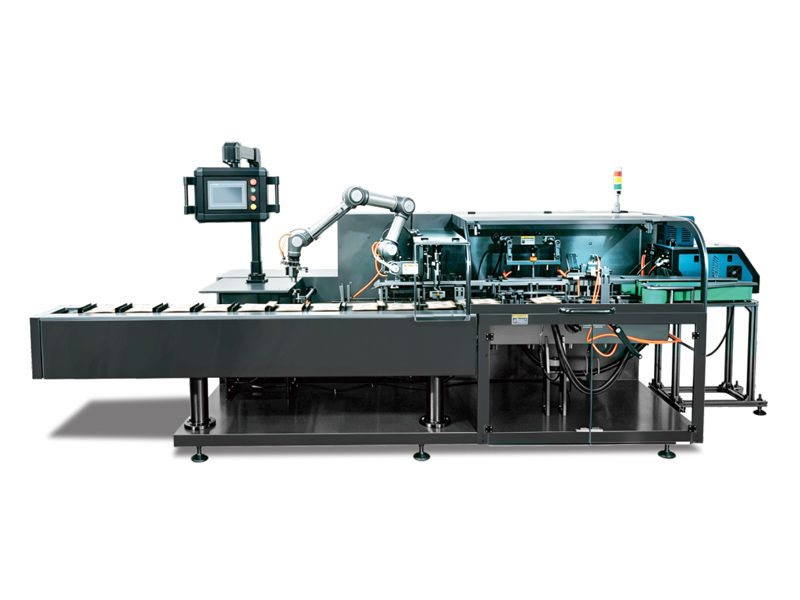

YY-ZH100 INTERMITTENT AUTOMATIC CARTONER

Equipment Introduction:

YY-ZH100 horizontal automatic cartoning machine is a high-tech productintegrating machinery, electricity, pneumatics and optics. Itissuitableforray-loaded oral liquids, ampoules, vials, pre-filled syringes, etc. It can also be used for automatic cartoning of bottled medicines, aluminum-plastic blisters, pillow-packaged medicines and similar itemsIts working processincudes conveying of tray-loaded products oritems: conveying of drug instructions (which can be automatically folded into 1-4 folds); automatic carton forming and conveying, loading the products and folded instructions into the carton simultaneously; and automaticalycompleting complex packaging processes such as batchnumber stamping and sealing of papertongues at both endsThis machine can be connected with labeling machines, blister packaging machines, pillow packaging machines, etc. to form a packaging line(there are two carton sealing methods: tongue insertion and hot melt adhesive sealing).

Feature:

PLC automatic control, variable frequency speed regulation, all electrical componentsadopt internationally renowned electrical brands.

Adopt human-machine interface operating system.

Automatically display faults, box-filling speed and product count.

Automatically detect functions such as missing packaging of medicine plates(products), incorrect installation of instructions, and rejection.

Stable performance, simple and easy to operate.

No product without instructions, no instructions without box filling.

No product or insufficient product supply, the machine will run in idle mode withoutpushing products. When product supply resumes, it will automatically operate. Whenproduct box-filling is notin place, it will automatically stop.

Automatic stop when there is no box, continuous no instructions automatic stop.

Convenient to change different product specifications.

Main drive has overload protection device.
This machine can be used independently or can be connected with blister packagingmachine, labeling machine and other equipment to form a complete production line.

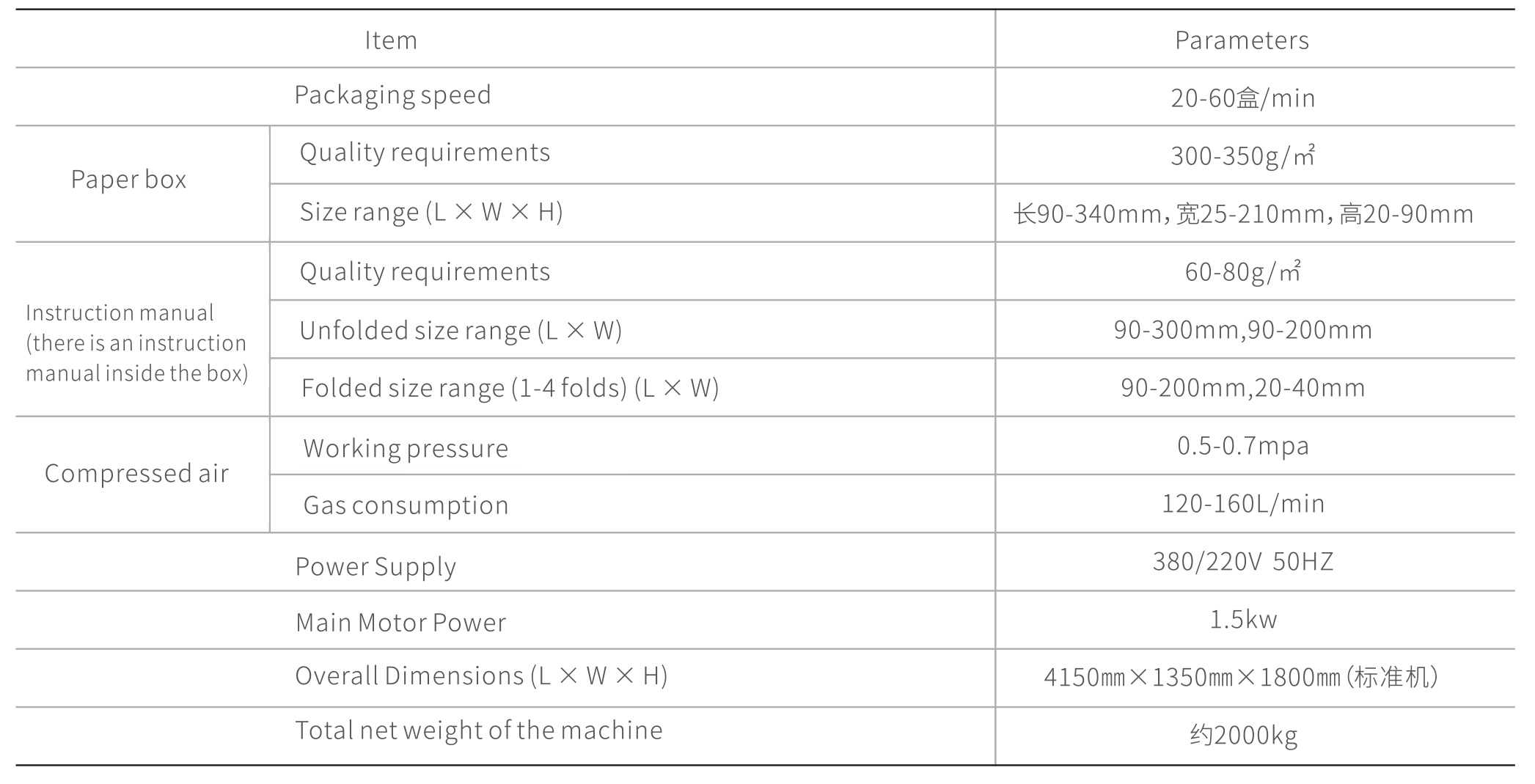

Technical Data Sheet：
