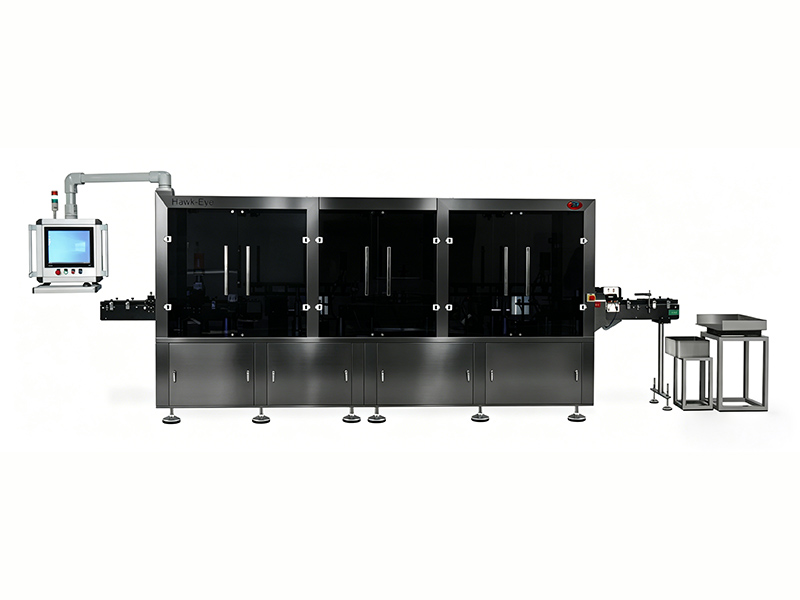

YY-LPDJJ BFS ROW LAMP INSPECTION MACHINE

APPLICATIONS:

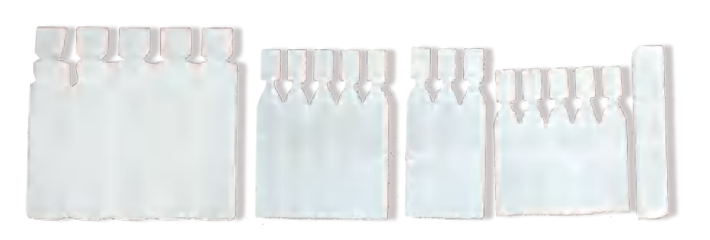

BFS row plastic ampoule series

Work process:

1. The feeding device, consisting of an in-bottle conveyor belt, a horizontal-to-vertical bottle inverter andan acceleration conveyor belt;
2. The inspection area, where the inspection stations are divided into two parts. The first group of stationsadopts an inspection method from bottom to top, mainly inspecting the filling volume, black and whitespots on the bottle body and bottom. The second group of stations mainly inspects the appearance of the
bottle top, sealing and seams;

3. The bottle ejection section, composed of a reject conveyor belt and an out-bottle conveyor belt. Therejection can achieve classified rejection.

100% comprehensive inspection of BFS ampoules

Reliably identify damage, deformation, foreign particles, incorrect filling, product color deviation,impurities, black burn marks, appearance defects and sealing errors with intelligent LED lighting, opticalinstruments, image processing and evaluation.

TECHNICAL PARAMETER:

Stable output: 0 - 150 rows per minute (1ml - 10ml)

Power:4kW,380V,50Hz

Technical advantages of BFS light inspection machine equipment

Does not cause any damage to the packaging, that is, non-destructive testing.

All products are tested, that is, online testing.

Has enough sensitivity, can detect small black spots, white spots. (>40um foreign body)

BFS lamp detector is mainly for the characteristics of domestic rooming products, allround detection.
Detection parts include: head, tail, front and back. (Two sets of stations, eight cameras)

Can eliminate the interference of external factors or human factors.

Can be verified
