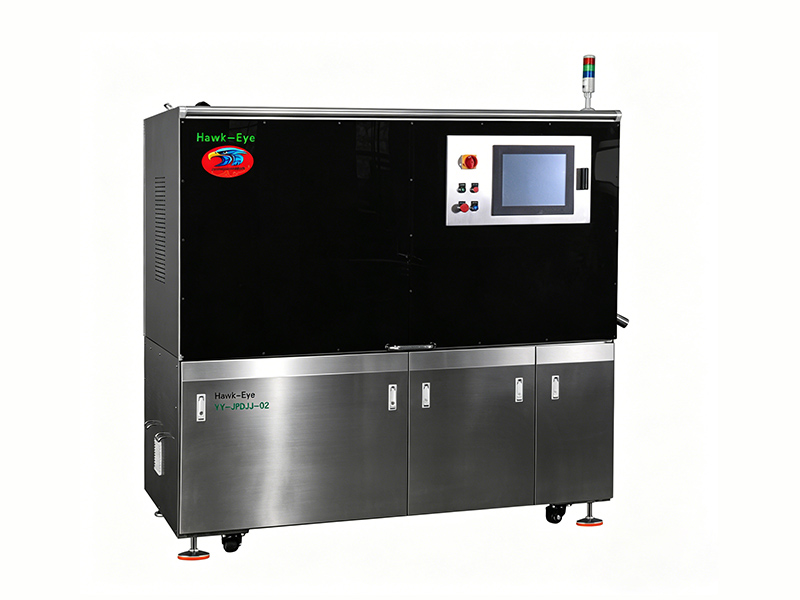

YY-JPDJJ-02 CAPSULE TABLET TESTER

APPLICATIONS

Applicable dosage forms: soft capsules, special-shaped soft capsules, etc.

MAIN CHARACTERS

1. By using multiple CcDs for repeated quadrant overlap detection, the rate of missed detection is extremelylow. Under normal requirements, the detection accuracy rate is 99.5%.

2. It can accurately detect various internal or external defects of the capsule, such as: split, sleeve ring, dirt,small hole, empty capsule, foreign body capsule, half-filled, top concave, etc.

3. Especially, it can detect printing defects.
4. The powder leakage of a capsule during operation will not affect other capsules, and it is very clean andconvenient.
5. When combined with a vacuum feeding device, it can achieve unmanned operation.

6. Equipped with high-speed and high-precision industrial CCD and industrial computer, the equipmentoperates stably, with a detection speed of up to 200,000 capsules per hour, and can run for 24 hours.

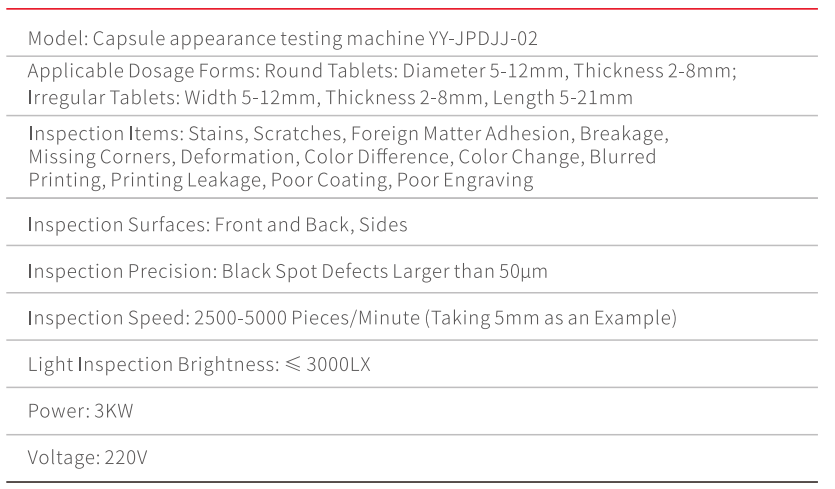

TECHNICAL PARAMETER
