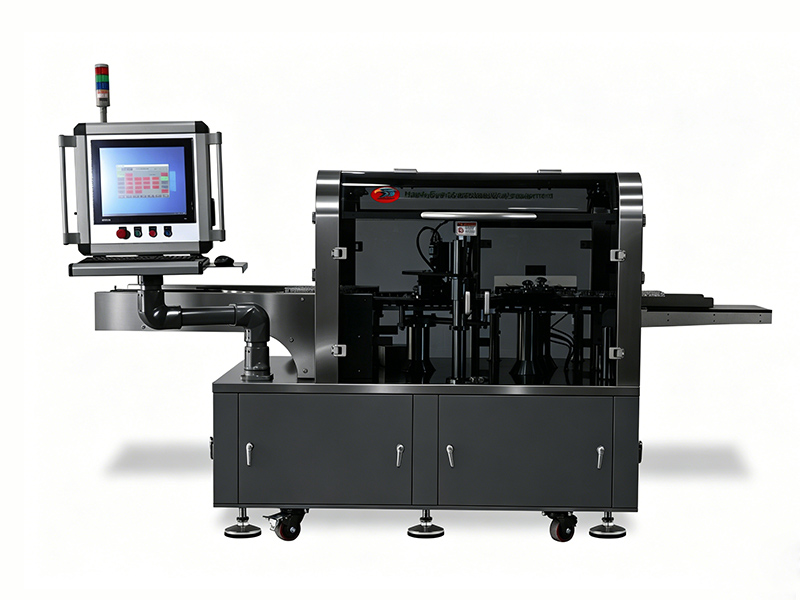

YY-PTJCJ AUTOMATIC BOTTLE HEAD TESTING MACHINE

APPLICATIONS:

1-20mlampoules

MAIN CHARACTERS:

The main purpose is to conduct inspections on the bottle caps of ampoules and vials;
The inspection contents include: frayed caps, carbonization, black spots, bubble caps, flat caps, bulged caps, pointed caps, scratched caps, bottle height; The mechanism for loading and unloading bottles adopts the star-wheel Bernoulli principle, resulting in a low breakage rate;
Anti-breakage bottle device. When there is a medicine stuck at the front end, the front end retreats, and the proximity switch senses it, causing the equipment to stop. This prevents bottle breakage; A safe and reliable rejection system;
The parameter settings are simple, and users can operate the equipment within a short period of training;
It is equipped with a communication interface, enabling remote diagnosis;
The sensitivity of the detection can be adjusted according to customer requirements and continuously optimized. The software system is friendly to operate and has an easy-to-understand interface; The detection sensitivity and parameters can be conveniently set to meet user needs;
A communication interface is reserved for remote monitoring, and free remote online technical services are provided; Unqualified images are saved and can be accessed online for unqualified image review to facilitate user statistics and process adjustment; The self-monitoring system in the working state (when important operation points fail, the machine will automatically alarm) can adjust the detection speed and sensitivity within a certain range; The equipment uses full servo drive, with stable and reliable movements and basically no maintenance for transmission components; During the detection process, it can automatically separate defective products from qualified products; The detection software has an Al recognition function, and the software intellectual property is completely self-developed. The comparison of human-machine batch detection shows that the equipment data is superior to manual detection; The control system: The equipment uses a PLC system for automatic control, with 3-level password protection programs, which can prevent parameters from being modified at will; Mold replacement: The equipment can adapt to different specifications of products by replacing molds, and the mold replacement is simple and quick, with accurate alignment, and each specification mold has a clear marking for distinction; When there are consecutive defective products and the quantity exceeds the set value, the equipment will automatically stop; The equipment has an open door stop function;
Emergency stop buttons are installed at the feed inlet of the operation console and the tail bottle collection position; This facilitates operation and maintenance; The process data during any alarm will be stored as operation data;

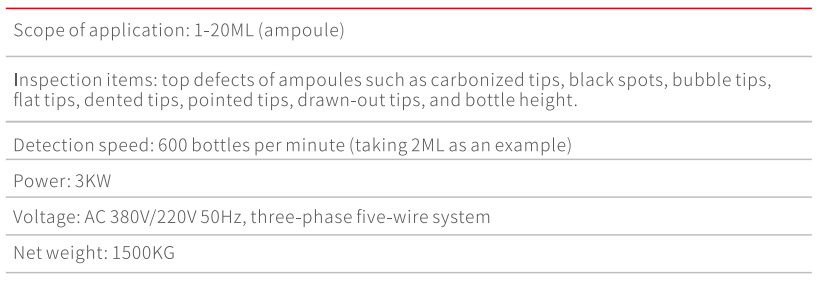

TECHNICAL PARAMETER:
