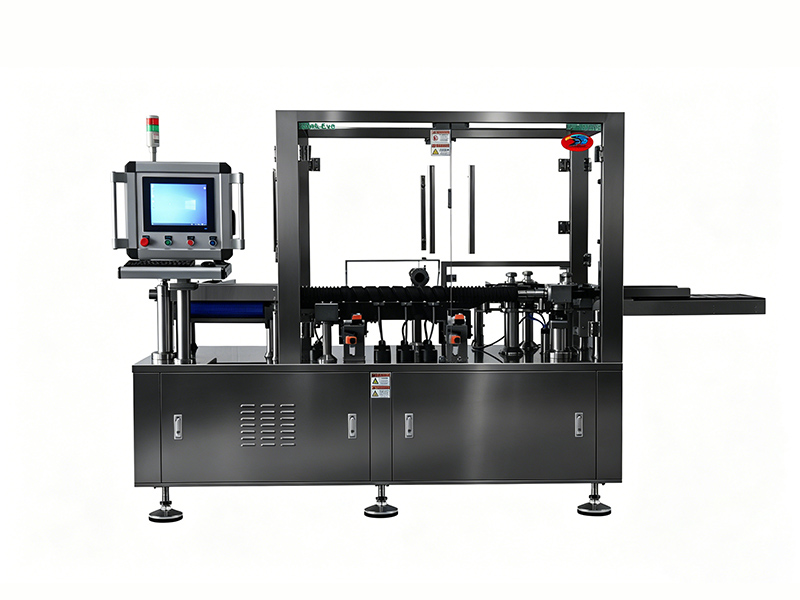

YY-JLJ-600 AUTOMATIC HIGH VOLTAGE DISCHARGE LEAK DETECTION MACHINE

APPLICATIONS:

1-20ml ampoules, vials/oral liquid bottles series

MAIN CHARACTERS:

The bottle entry and exit adopt the star wheel Bernoulli principle mechanism, with a low bottle breakage rate.

Anti-break bottle device: When a medicine is stuck at the front end, the front end retreats, and the proximity switch senses it,causing the equipment to stop. This prevents bottle breakage.

Safe and reliable rejection system:

Simple parameter setting, users can operate the equipment after a short training period;

Detection electrodes are placed at the bottom, making cleaning convenient. The transformation from upright to lying downand from lying down to upright positions of the medicine is smooth, reducing the risk of bottle breakage;

Equipped with communication interfaces for remote diagnosis;

Detection sensitivity can be adjusted according to customer requirements;

Constantly optimized software system with a user-friendly interface;

Detection sensitivity and parameters can be easily set to meet user needs;

Reserves communication interfaces for remote monitoring and provides free remote online technical services;

Unqualified images are saved, and users can access them online for statistics and process adjustment;

Self-monitoring system during operation (the machine automatically alarms when important operation points fail). Thedetection speed and sensitivity of the equipment can be adjusted within a certain range as needed;

The equipmentuses fullservo drive, with stable and reliable actions and basic maintenance-free transmission components,During the detection process, it can automatically separate defective and qualified products;

Jointly developed high-voltage power supply technology with deep experience and complete intellectual property rights.Batch detection comparison between human and machine, the equipment's various data are superior to manual detection;

Control system: The equipment uses a PLC system for automatic control, with a 3-level password protection program toprevent parameters from being modified at will.

Mold replacement: The equipment can adapt to different specifications of products by replacing molds. Mold replacement issimple and quick, with accurate positioning, and each specification of molds has clear markings for distinction;

Real-time monitoring of detection voltage. When the voltage is lower than the alarm value,the equipmentautomatically stops.When the equipment produces consecutive defective products and the quantity exceeds the set value, the equipmentautomatically stops;

The equipment has a door-opening stop function, and the outer coveris equipped with an electromagnetic protection film;

The equipment has an ozone recovery function;

Emergency stop buttons are installed at the feed port and the bottle collection position at the tail of the operation table;

Convenient for operation and maintenance;

Process data during any alarm will be stored as operation data.

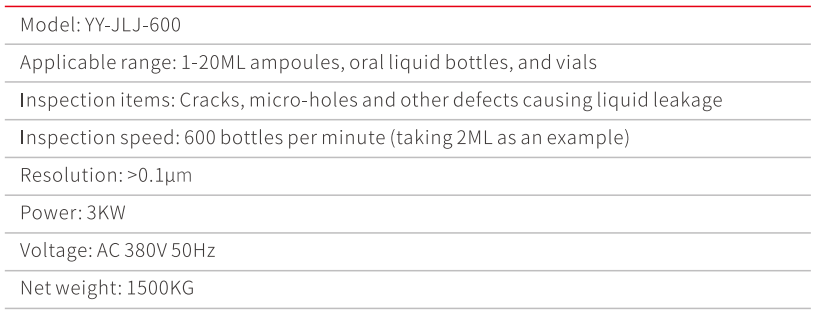

TECHNICAL PARAMETER
