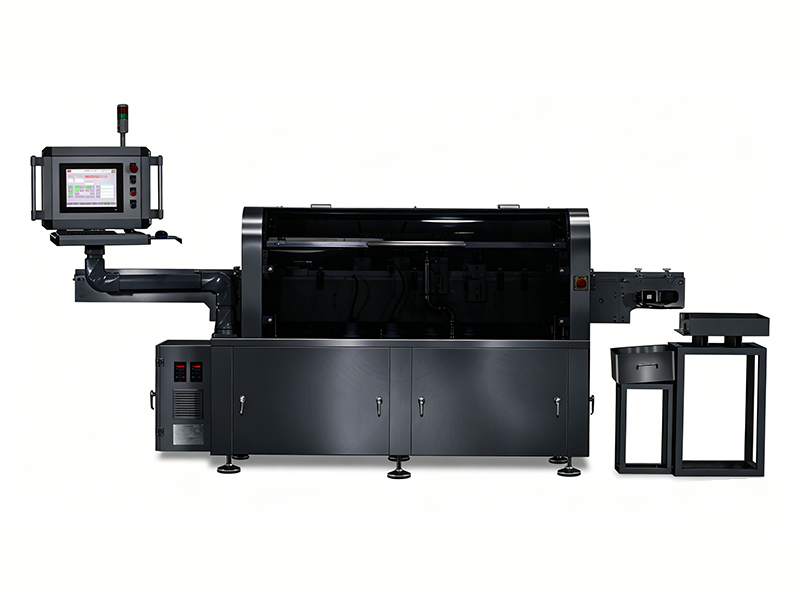

BFS HIGH VOLTAGE DISCHARGE LEAK DETECTOR

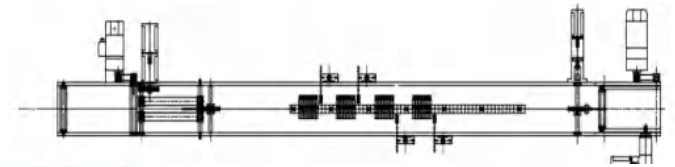

Workflow:

The feeding device is composed of bottle inlet belt and accelerating belt; testing belt, testing belt is.

APPLICATIONS:

Plastic ampoules in a row 2ml- 15ml

MAIN CHARACTERS:

Shandong Hawk Eye BFS joint leak detection machine is based on Nica, Japan joint plastic ampoule leak detection machine,discharge detection samples through highfrequency and highvoltage, and distinguish through the curentvalue change of qualifiedand unqualified products.

Comprehensive detection, mainly detect the head, middle and melt seal. The key technology for row detection accuracyis to detectthe corresponding angle and position of the electrodes for each product. Shandong Eagle Eye designs detection electrodes fordifferent shapes of each product. The detection accuracy is more guaranteed.

Technical advantages of high-voltage discharge testing equipment:

No damage is caused to the packaging, namely, nondestructive testing.

All products are tested, thatis, online testing.

With sufficient sensitivity to detect minor leaks. (3μm100% detected)

BFS leak detection machine is mainly aimed at the characteristics of domestic row products, all-round detection, detection parts include: head, tail, front and back.(4 electrode full coverage)

Eliminating the interference of external factors or human factors.

Be verified.

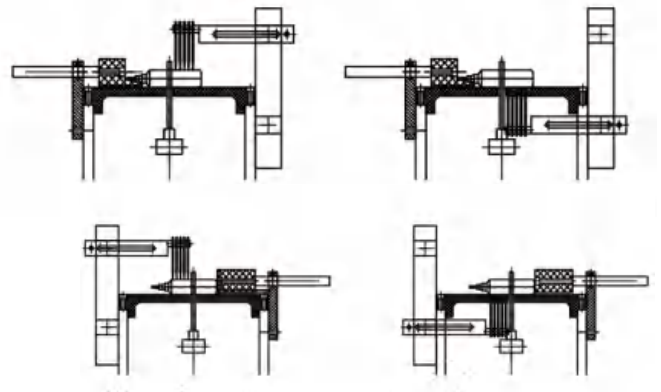

Electrodelayout:

Both positive and negative electrodes shall contact drugs orhave very close distance (2-3mm) and the distance is adjustable;to facilitate stable detection loop during use.

There is enough distance between the positive and negativepoles to ensure that the positive and negative poles are notdirectly connected when testing.

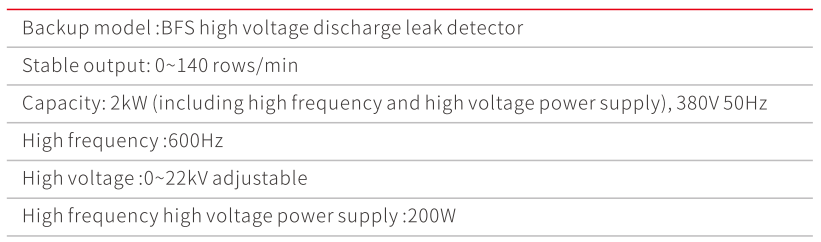

TECHNICAL PARAMETER:
