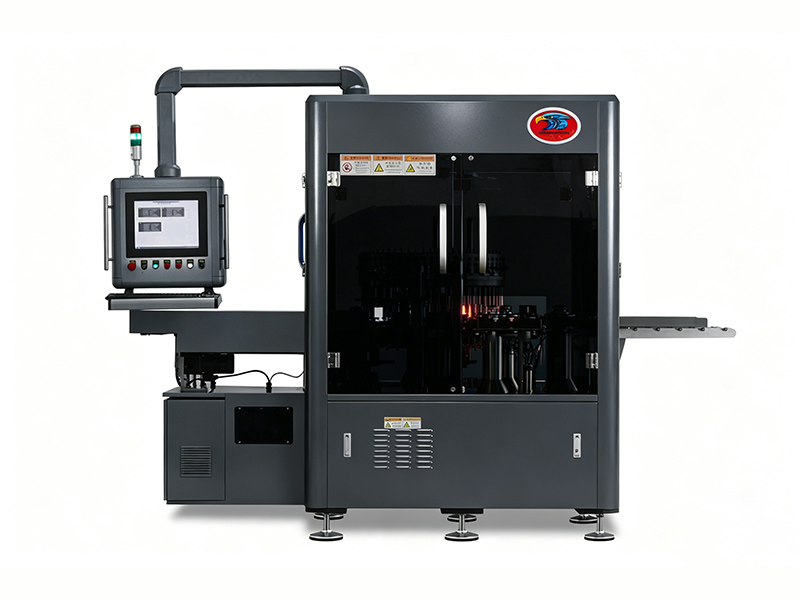

YY-HZDJJ-500L Rotary lamp inspection machine

APPLICATIONS

1-50ml Cillin bottle/oral liquid bottle series

MAIN CHARACTERS

1. This series of inspection machines uses high-resolution industrial cameras to magnify the inspected objects by dozens of times, enhancing the visibility of visible foreign matter.
2. Capable of online detection of foreign objects such as glass fragments, aluminum shavings, rubber particles, hair, and fibers above 40μm in sterile liquids, ensuring accurate rejection of defective products.
3. Appearance inspection: The lighting, imaging, and processing systems are designed based on specific inspection requirements, typically using a static method.  The inspection items for vial inspection machines include: concave aluminum caps, convex aluminum caps, missing aluminum caps, overbands, and retaining rings, etc.
4. The software has independent intellectual property rights.
5. Menu-based access control system, where only administrators can modify parameter settings, preventing operational errors by operators.
6. Images of defective products are saved to facilitate user analysis of existing issues for process improvement. It also features an online inspection image playback function for convenient online monitoring.
7. Inspection parameters can be freely set and saved according to customer requirements to achieve the best results.
8. All imported servo motors are used as the driving force to ensure the precision of equipment operation. The centrifugal belts are from well-known brands with extremely high wear resistance.
9. The operation interface can effectively display the working status of each camera on the equipment, ensuring the safety of product inspection.
10. The electrical control system adopts an Omron motion controller, where each motor outputs independently and accurately, ensuring precise and error-free motion positioning. This effectively avoids signal lag and delay caused by traditional PLCs using photoelectric sensors and trigger signals, achieving consistency in tracking speed and millisecond-level precision in camera image capture. This results in a qualitative improvement in inspection effectiveness and equipment stability.
11. Machine fault information feedback is provided.
12. Reserved communication interface for remote fault diagnosis.
13. The centrifugal bottle holder is made of high-strength alloy material and does not need replacement within two years of normal operation, significantly saving usage and maintenance costs.
14. Real-time monitoring of light source illuminance, camera status, and centrifugal bottle rotation status. Fault information will be immediately displayed on the control panel, and the machine will alarm and shut down. The overall machine height is perfectly suitable for general female operators.
15. Additionally, the specialized optical path calibration method ensures that the fully automatic inspection system operates stably and efficiently.

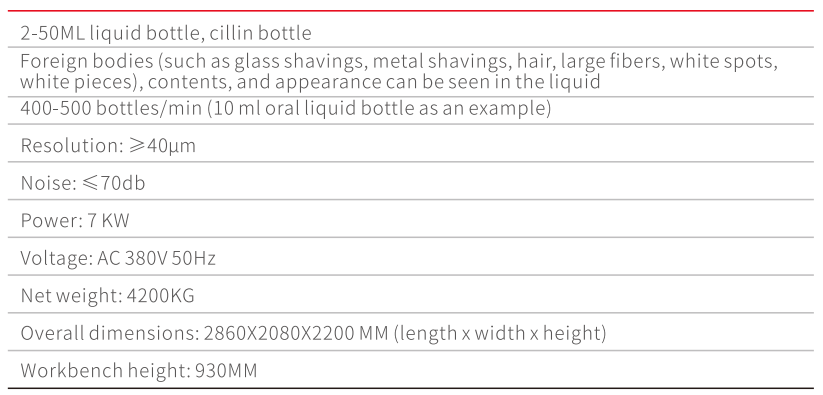

TECHNICAL PARAMETER
