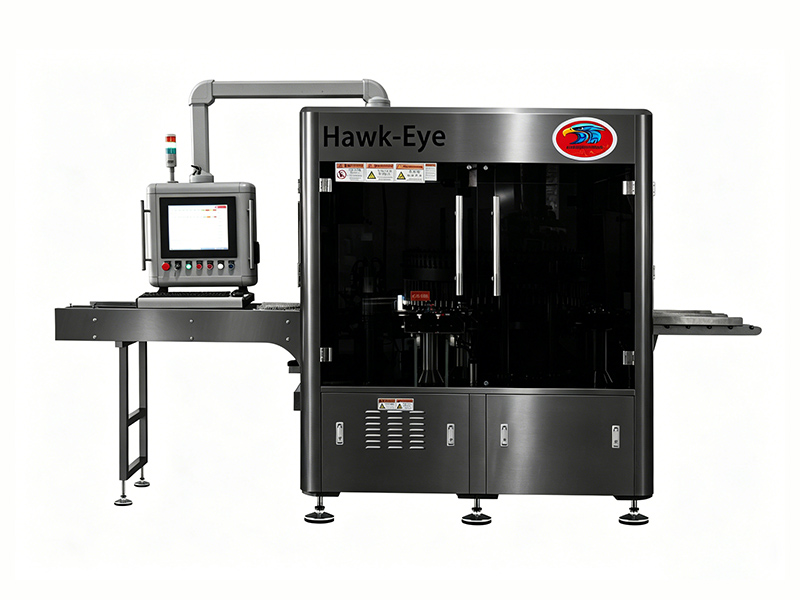

YY-HZDJJ-600X AUTOMATIC MULTI-FUNCTIONAL INSPECTION MACHINE

APPLICATIONS

1-20ml ampoules, vials/oral liquid, eye drops

MAIN CHARACTERS

1. This series of light inspection machines uses high-resolution industrial cameras, magnifying theinspected objects by dozens of times, making visible foreign substances more visible.

2. It can detect foreign substances such as glass shards, aluminum shavings, rubber debris, hair, andfibers larger than 40um in sterile liquids online, ensuring that substandard products are accuratelyremoved.
3. The software is owned by an enterprise with independent intellectual property rights.

4. The bottle cap and bottle head are inspected by three cameras, providing better inspection results.Unqualified bottle heads are removed before the bottles enter the inspection turntable, preventingbroken bottles due to bottle head cracks and affecting the inspection.

5. The menu is hierarchical, and only administrators can set and modify parameters, avoiding thepossibility of operators mistakenly modifying parameters.

6. Images of substandard products are saved for users to analyze existing problems and improve theprocess. It has an online inspection image playback function for convenient online monitoring.

7. Inspection parameters can be freely set and saved when the best effect is achieved according tocustomer requirements.
8. All imported servo motors are used as the driving force to ensure the accuracy of equipmentoperation. The centrifugal belt is made of a well-known brand and has extremely high wearresistance.

9. The operation interface can effectively display the working status of each camera on theequipment, ensuring the safety of product inspection.

10. The electrical control system uses Omron motion controllers, with each motor independently andprecisely outputting, ensuring accurate movement positions without misalignment. This effectivelyavoids signal lag and delay caused by traditional PLCs using photoelectric sensors to trigger signals,achieving consistent tracking speed and millisecond-level deviation-free camera image capture,resulting in a significant improvement in inspection results and equipment stability.

11. Machine fault information feedback setting.

12. Communication interfaces are reserved for remote fault diagnosis.

13. Real-time monitoring of light source illuminance, camera status, and centrifugal bottle rotationstatus. Fault information is immediately displayed on the control panel and an alarm is triggered tostop the machine. The overall height of the machine is completely suitable for female operators.

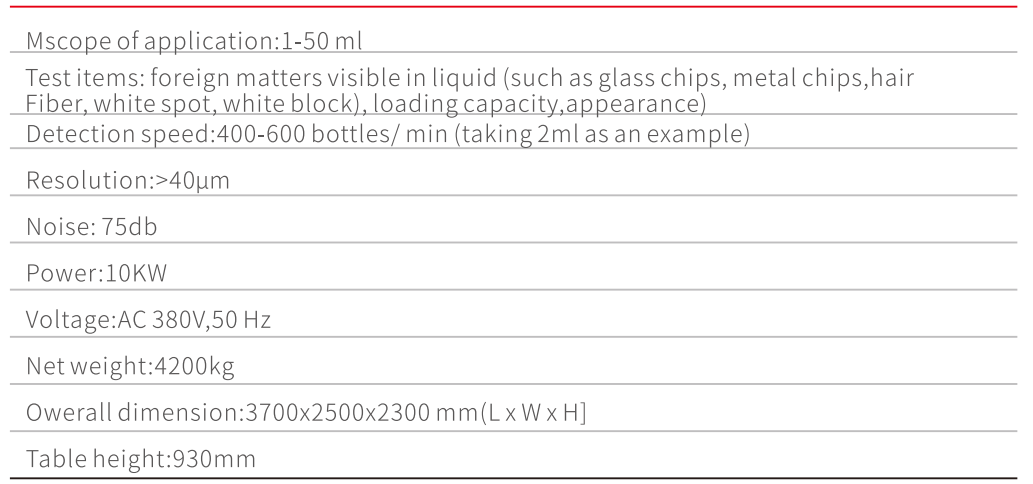

TECHNICAL PARAMETER
